#DC-DC Step-Up / Boost Converter MT3608 Voltage Regulator Module

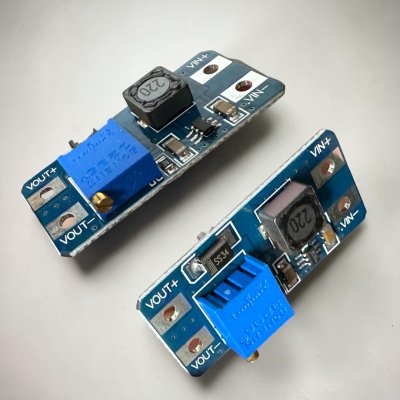

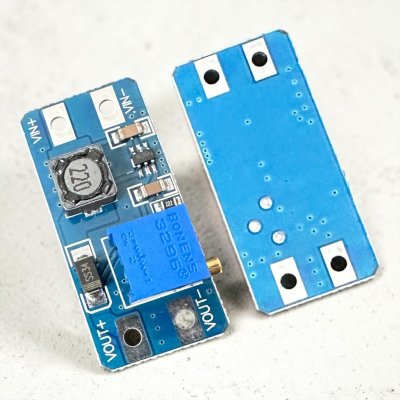

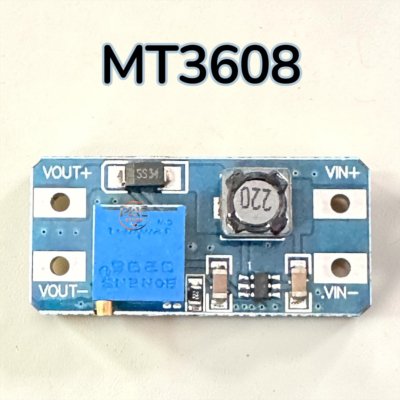

⚡ DC-DC Step-Up / Boost Converter Module (MT3608)
Product Specifications
Product Type: DC-DC Step-Up / Boost Converter Module
Main IC: MT3608
Input Voltage: 2V - 24V DC
Output Voltage: 5V - 28V DC (Adjustable by turning the onboard trimpot)
Max Output Current: 2A (Continuous operation recommended under 1.5A for stability and extended lifespan)
Switching Frequency: 1.2 MHz
Conversion Efficiency: Up to 93%

Applications
Used to step up DC voltage, such as boosting power from a 3.7V (Li-ion) or 5V battery to 9V, 12V, or 24V to power devices requiring higher voltage.
Suitable for DIY projects, electronics projects, and repair work requiring voltage level adjustments to match specific loads.
⚠️ Recommendations and Warnings
The Output voltage must always be higher than the Input voltage. If adjusted lower than the input, the output voltage will match the input and cannot be regulated.
Do not exceed the maximum input voltage rating, and avoid reverse polarity connections (positive [+] and negative [-]), as this may instantly damage the module.

This product comes with no warranty, as it is an electronic component sensitive to handling and adjustment conditions.

Claim Conditions: Customers must record a continuous, uncut video clip starting from unboxing the parcel and inspecting the product to use as evidence for claims in case of damage.
