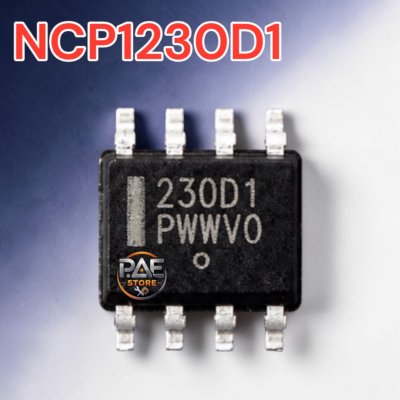

#IC NCP1230D1 (230D1) SOIC-8 PWM Switching Controller IC

⚙️ Product Specifications

IC Part Number: NCP1230D1 (Marking Code: 230D1)
Manufacturer: onsemi (ON Semiconductor)
Package Type: SOIC-8 / SOP-8 (SMD)
Function Type: Fixed-Frequency Current-Mode PWM Controller
Operating Frequency: 65 kHz (D1 / 230D165 version)
Maximum Supply Voltage (Vcc Max): 18 V
️

Applications

Used as a PWM controller IC for MOSFET switching in Power Supply Units (PSUs).
Commonly used in laptop adapters, TV/monitor power supplies, appliance control boards, and general switching power supplies.
Tips and Warnings

Recommendation: Please verify the marking code on the chip (Marking: 230D1) and the SMD SOIC-8 package size match your original part before placing an order.
Warning: As this is a small SMD component, use appropriate soldering tools with a controlled temperature to prevent damaging the chip, and ensure correct Pin 1 orientation (dot marker) before installation.
️
